Distinctive Shapes, Strong Performance - Made in Germany
- High-quality lever valves
- PID controller to program the steam temperature
- 2 high-end ECM brew groups with innovative stainless steel brew bells
- Automatic brew group cleaning program

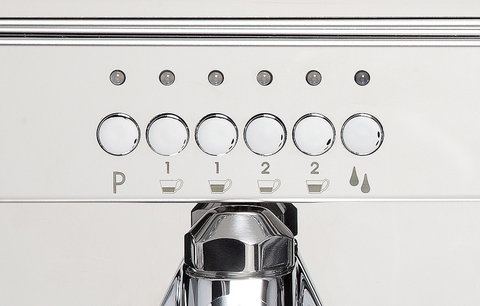

- Programmable dosing of 4 coffee buttons; optional: manual dosing
- Built-in rotary pump
- Boiler can be emptied out easily for transport
- Dual pump and boiler gauge
- Connectible, electronically controlled pre-infusion
- 3 ergonomically angled ECM portafilter with weight-balanced shape (1x 1 spout, 2x 2 spouts)
- 2 drip-grids to raise cups
- Service friendly: easy to open by loosening 4 screws
Technical data
| ECM brew groups | ● |
| Ring brew groups | |
| Water tank | |
| Boiler volume | approx. 14 l |
| Copper boiler | ● |
| Stainless steel boiler | |
| Boiler pressure gauge |
● |
| Pump pressure gauge |
● |
| PID control | ● |
| Display | ● |
| Programmable dosing | ● |
|
Pump type |
Rotary pump |
|
Water tank/direct water supply switchover |
|
| Rotary valve technology | |
| Lever valve technology | ● |
| Large cup warming tray | ● |
| ECM portafilters |
● |
| Number portafilters | 3 |
| Heat-up phase | 25-30 min |
| Performance | 4000 W |
| Voltage |
3 phases, 230 V each, other voltages on request |
| Weight | 72.5 kg |
| Measurements (without portafilter) w x d x h |
|
